| Keystone NK | |
|---|---|
 | |
| Role | Biplane trainer |
| National origin | United States |
| Manufacturer | Keystone Aircraft |
| First flight | 1928 |
| Introduction | 1930 |
| Primary user | United States Navy |
| Number built | 20 |

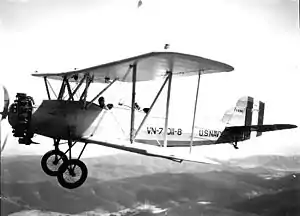

The Keystone NK or Keystone Pup was a two-seat biplane trainer built by Keystone Aircraft for the United States Navy.
Design and development
The NK was an open-cockpit two-seat biplane with a convertible wheel or float landing gear. It was powered by a 220 hp (164 kW) Wright R-790 Whirlwind. The company prototype designated the Pup was entered into a United States Navy design competition for a trainer and was awarded a contract for three prototypes designated XNK-1. Following evaluation a production batch of 16 was ordered designated NK-1 which were delivered during 1930.
Variants
- Pup
- Keystone prototype, one built.
- XNK-1
- Prototypes for Naval variant of Pup, three built.
- NK-1
- Production aircraft with minor changes, 16 built.
Operators
Specifications (NK-1)
General characteristics
- Crew: 2
- Length: 26 ft 6 in (8.08 m)
- Wingspan: 37 ft 0 in (11.28 m)
- Powerplant: 1 × Wright R-790 Whirlwind , 220 hp (164 kW)
Performance
- Maximum speed: 116 mph (186 km/h, 101 kn)
- Range: 375 mi (603 km, 326 nmi)
References
- Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions.
- The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
- Andrade, John (1979). U.S.Military Aircraft Designations and Serials since 1909. Midland Counties Publications. ISBN 0-904597-22-9.
